Vibration Absorber
Besides of compensating thermal expansions, metal bellowed expansion joints can provide proper solutions for the problems caused by the system vibration.
Bellow Material
Stainless Steel AISI 321 (Opt. 304,316L, 316TI, 309)
Connection Types
Fixed and Floating Flanged, Welded Ended & Grooved,
Flange Material
PN 16, St.37.2 as standard, the material can be customised on request
Inner Sleeve
Available in stainless steel AISI 321 (Opt. 304,316L, 316TI, 309) on request
Operating Temperature
-10°C/+550°C
Operating Pressure
Standard pressure rating is PN16
Can be produced with different pressure rates PN 2,5- PN 63
TYPES
- Rotating Flanges

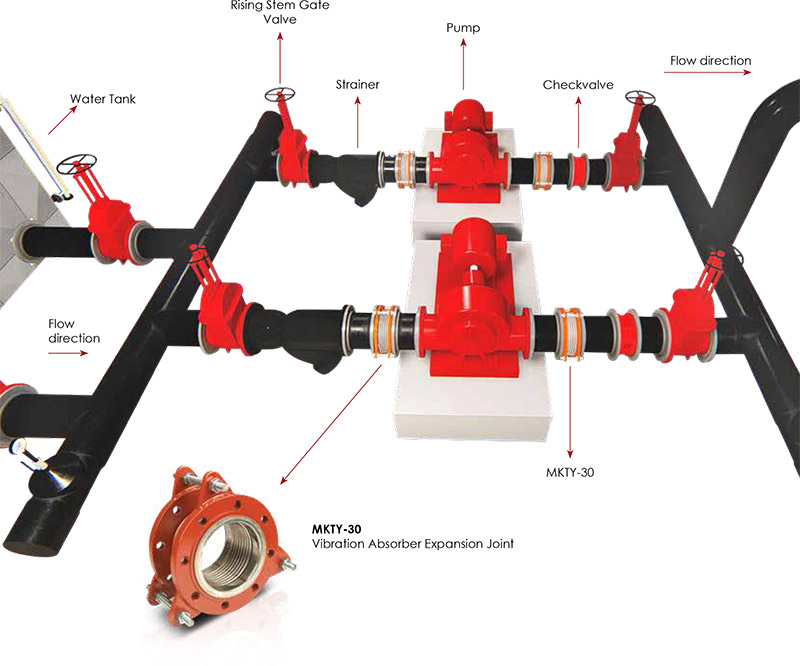

Installation Example for Vibration Absorbers
Downloads
If you need more documents, please drop us a message.
| Company | Scope of Certificate | |
|---|---|---|
 |
Axial, Lateral, Angular, Universal, Externally Pressurized and Pressure Balanced Expansion Joints from DN12 to DN6000, Rectangular/Square Expansion Joints 100x100mm - 6000x6000 mm | Download |
 |
TS EN 14917+A1 Axial, Angular, Lateral Expansion Joints from PN0,5 to PN16, from DN25 to DN500 | Download |
 |
Railway Certificate DIN 15085 | Download |
